Description

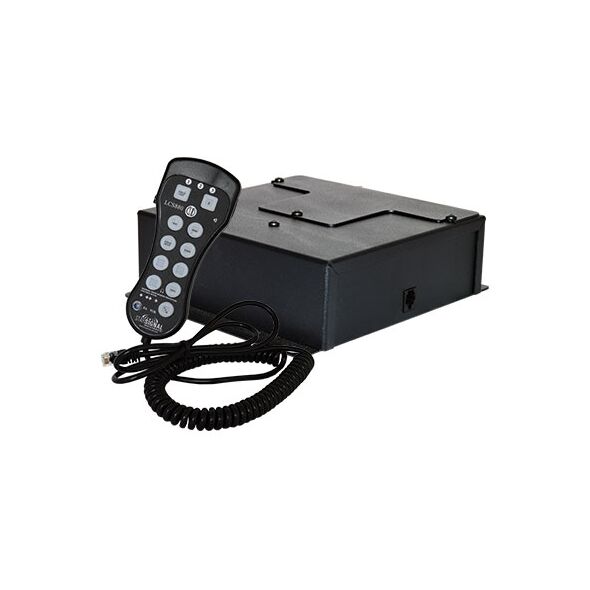

The LCS880 Series is a new ergonomically designed, 200 watt handheld siren / light controller.
Features:
- ergonomic design
- LED speaker diagnostics
- Wail, Yelp, Air Horn, Phaser, Manual, and Two Tone
- Self-resetting circuit protection against speaker shorts
- Integrated public address microphone
- Seven light functions
- Dual color backlighting on keypad (Red & Green)
- Four position slide switch with LED indicators
- Park kill
- Auxiliary input
- Positive locking wiring harness included
- Hand piece cradle for mounting or Velcro for concealed
- mounting
- Replaceable jumpers for option selection
- Positive and negative switching for AUX and PKILL inputs
- High and Low voltage shutdown protection
- Truck mount amplifier
- 30 standard function replaceable labels
- Drives one or two 100 Watt speakers
- Size: Control Head:
- 6"H X 2 1/2"W X 1 1/2"D
- Size: Amplifier:
- 2 1/2"H X 7"W X 7 2/8"D (plus 3/4" flange on each side)
- Weight: LCS880: 8.5 lbs.
- Output: 100 or 200 Watts (1 or 2 speakers)
- Voltage: 10V - 16V DC
- Frequency: 675-1633Hz
- Amp. Draw: 8 Amps (per speaker)
